Symmetrical Dual Redundant (SDR)

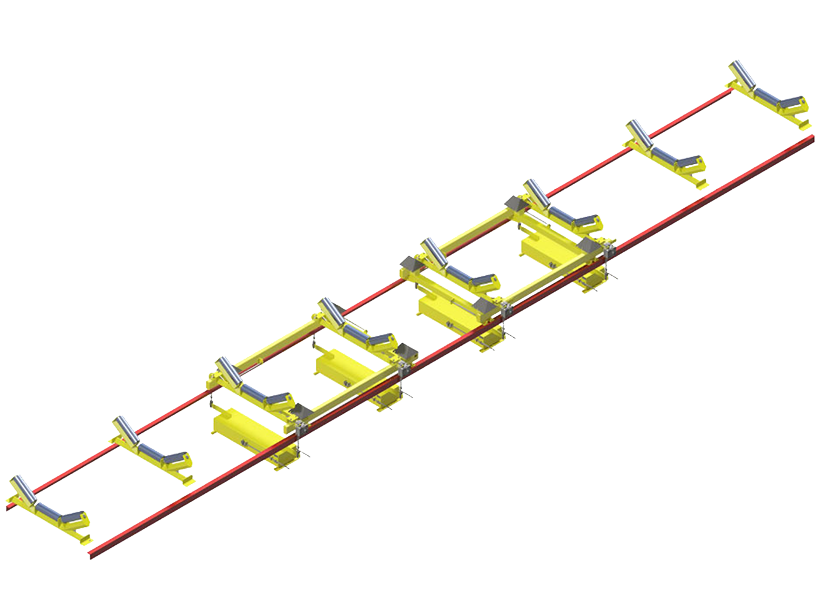

The Symmetrical Dual Redundant (SDR) scale represents the highest level of assurance in conveyor weighing. Combining two fully suspended weigh frames operating in series, it continuously cross-checks performance to detect discrepancies and verify measurement integrity in real time.
Built for high-value, high-consequence operations such as shiploaders and trade certified load-out conveyors, the SDR provides unmatched confidence in every transaction. It’s the ultimate solution for operators who demand verified accuracy, accountability and complete peace of mind in mission-critical applications.
Australian-Made
Proudly designed and built in Australia, with application-specific engineering.
Certified Calibration Support
Live material calibrations, efficient re-certification and remote support options
for maximum uptime.
Cost-Effective
Reduces on-site modification, re-engineering and downtime.
Customisable
Individually engineered to site requirements, with tailored idler spacing, load cell sizes
and finishes (galvanised or painted).
Direct Force Measurement
No levers, pivots, or bearings, delivering precision with fewer moving parts.
Durable Construction
Solid mild or stainless steel for extreme environments; typically 20-30+ year life.
Enhanced Accuracy
Guaranteed up to 0.1% depending on application, with high repeatability and minimal
recalibration.
Extended Weigh Length
Supports longer continuous belt segments for greater accuracy.
Flexible Configurations
Options from 2 – 6 idler weigh lengths, with pipe conveyor availability.
High Stability
Maintains performance over time with reduced calibration needs and long-term
accuracy.
Legal for Trade Certified
Compliant with NMI, NTEP and OIML standards, ensuring commercial confidence.
Minimal Build-Up Impact
Engineered to reduce error from material accumulation.
Load Cells
8
CSRR Design Option
Close Spaced Roller Rack Variant Available
Non-Intrusive Design Option
Installs without conveyor modifications, saving costs and preserving structural integrity.
Australia
NMI Certificate of Approval No. 6/14D/13
Accuracy Class 0.5, Class 1, Class 2; 2003 (first approved 1997)
OIML
Certificate of Conformance No. R50/1997-AU-03.01,
Accuracy Class 0.5; 2003
