IntelliRoll®

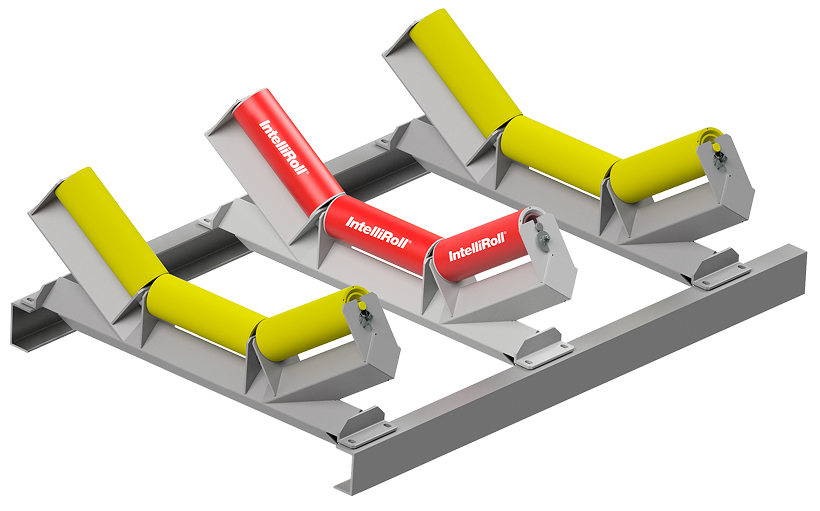

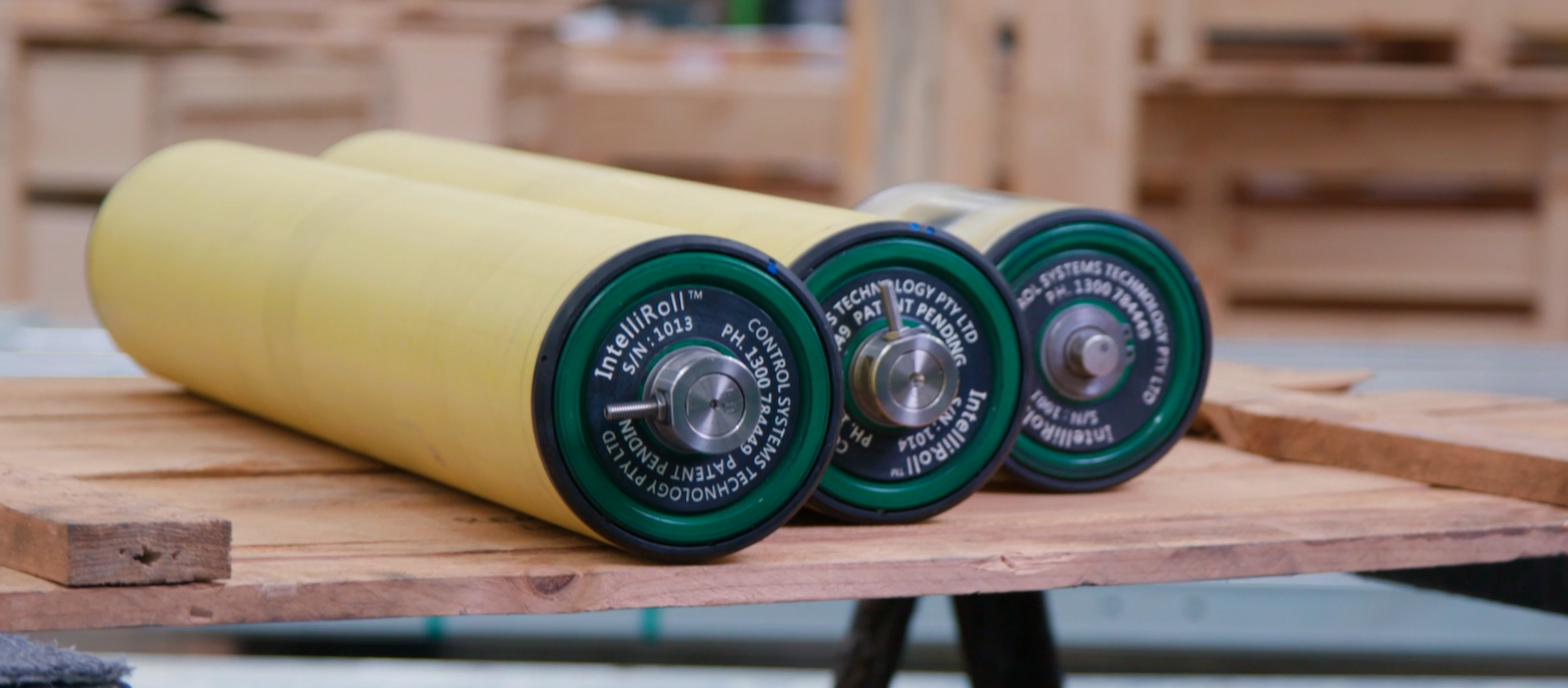

A groundbreaking wireless, autonomous weigh roll unit that replaces a standard roller with a fully integrated belt weigher-housing load cells, electronics, communications and self-charging power inside, with no external wiring required. Pre-calibrated, the IntelliRoll eliminates the need for tachometers and integrators, while reducing maintenance requirements. It transmits real-time data on flow rate, speed and tonnes via Wi-Fi and Bluetooth to a smartphone app. Useful as a process control belt scale, back-up belt scale or for process investigations and adhoc process testing.
Award-Winning Innovation: The IntelliRoll received the QME Best Product Launch Award (2018) and the Best of Sensors Award at the Sensors & Expo Conference, USA.
2% to 5% accuracy depending on application – ideal for process control applications.
3 Axis Accelerometer
32 Bit ARM M4 Processor
Battery Operation when belt stopped (8 hours)
Belt Speed 0.6 to 6 m/s
Dual 24 bit sigma-delta ADC’s for weight measurement
Energy Harvesting Generator
Temperature Sensor
WiFi Communication to User
XBee Mesh network roll to roll communication
All-in-One Design
Combines load cells, electronics, power, and communications in one unit.
App Interface

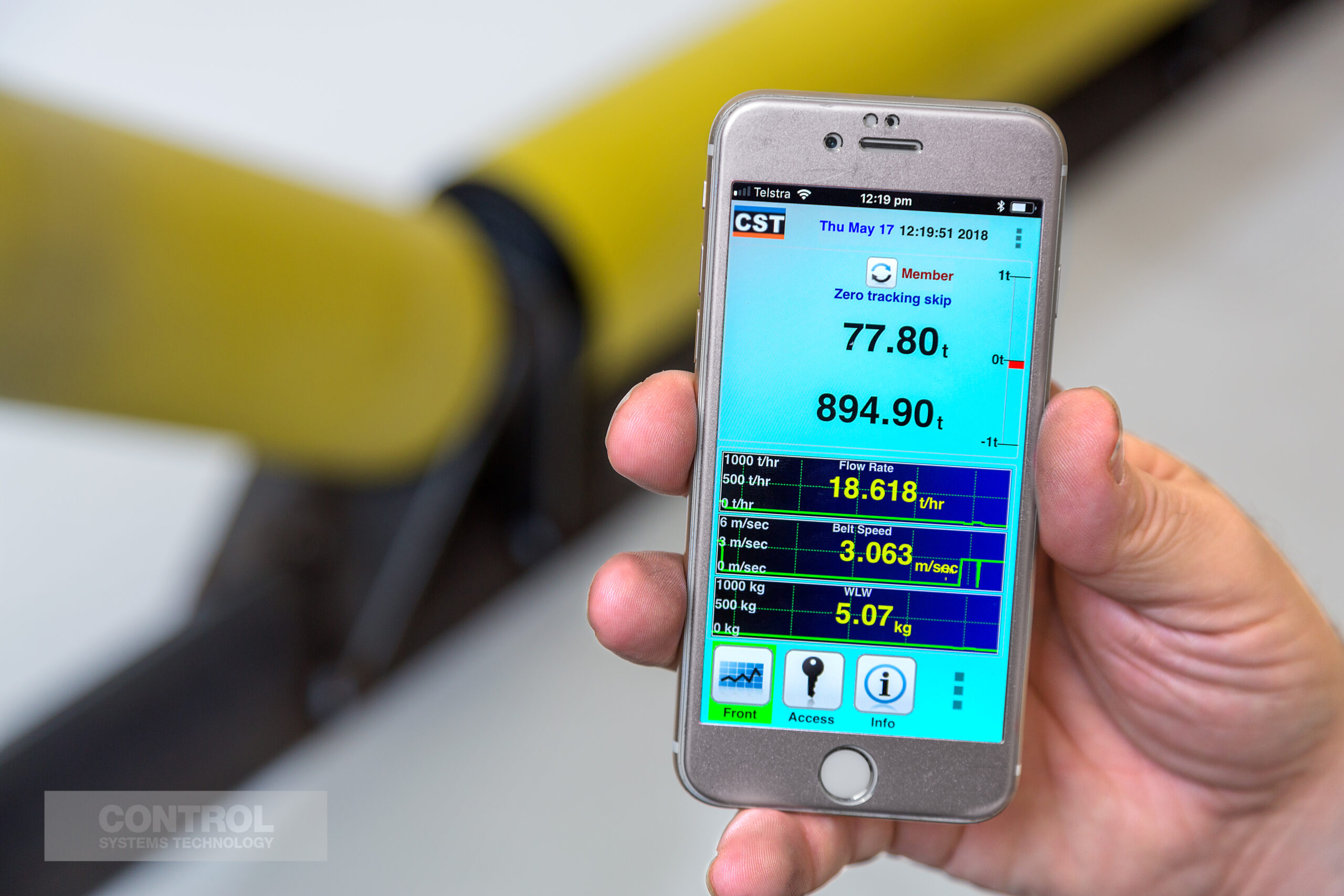

Download data via CST app when in Wi-Fi range; monitor and control via PC or tablet.
Australian-Made
Proudly designed and built in Australia.
Cable-Free & Self-Powered
Generates its own power from belt movement and transmits data via Wi-Fi or Bluetooth.
No need for external wiring, enclosures or displays.
Cost-Efficient
Eliminates the need for tachometers and integrators and reduces maintenance
requirements – minimising downtime and operational costs.
Real-Time Data
Dual 24 bit sigma-delta ADC’s for weight measurement
Simplified Integration
Easily integrates into existing conveyor systems and with CST’s intelligent remote
monitoring solutions.
Smart Communication
Units can share data wirelessly to improve accuracy; connects to PLC/SCADA via Wi-Fi.
